Personnel Retrieval Node

What is a Personnel Retrieval Node?

The Personnel Retrieval Node is a functional node in Magic Flow workflow specifically designed for querying and filtering organizational personnel information. It allows you to quickly locate and obtain personnel data based on multiple conditions (such as name, employee ID, position, department, etc.), much like performing precise searches in a corporate directory.

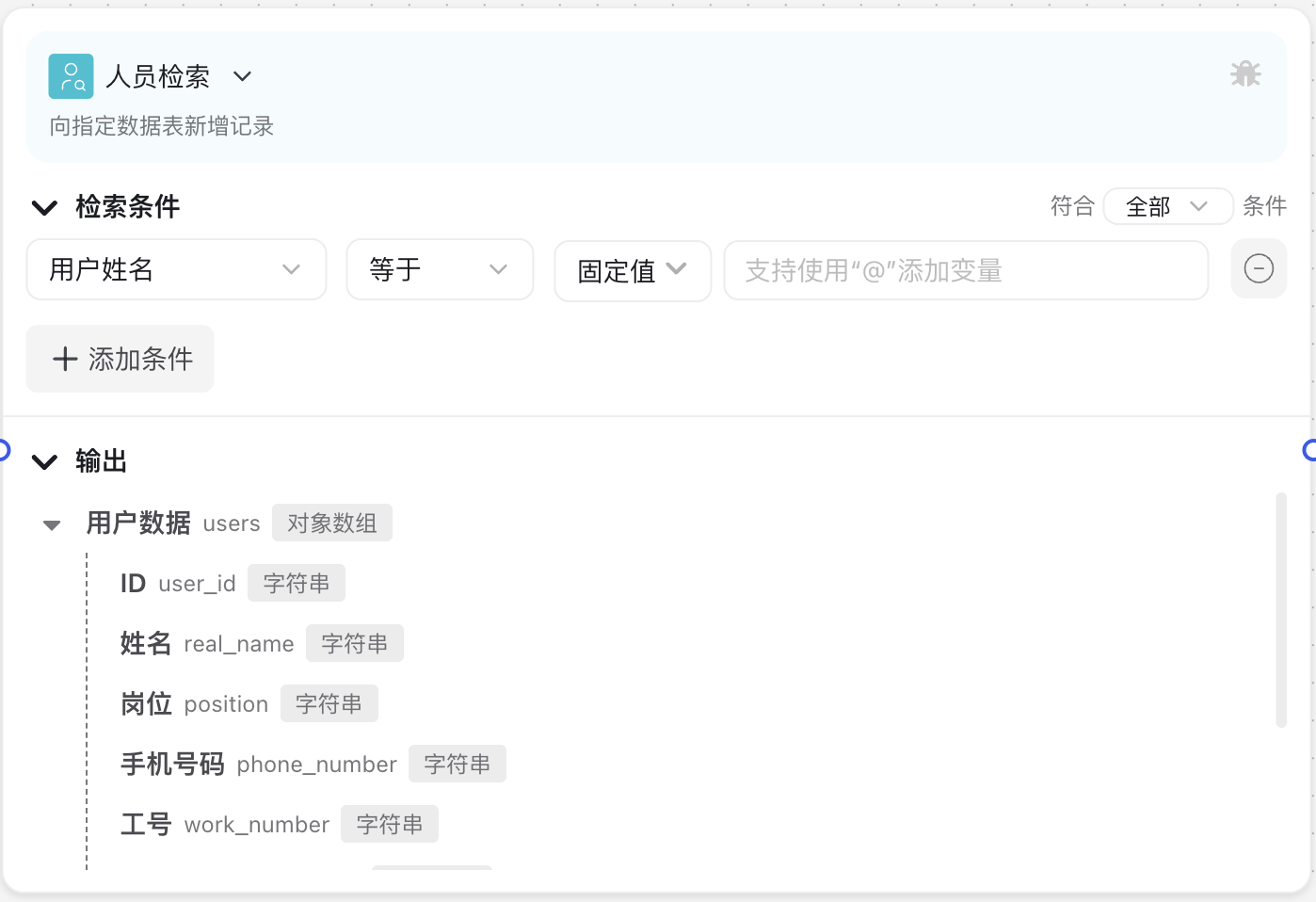

Image Description:

The Personnel Retrieval Node interface mainly consists of search condition setting area and output data structure preview area. The upper part shows various filter condition configuration options, including user name, employee ID, position, and other filtering conditions; the lower part displays the data structure of query results, including user basic information and department information fields.

Why Do We Need Personnel Retrieval Node?

In enterprise workflows, accurately obtaining personnel information is a fundamental requirement for many automated processes:

• Data Association: Link business data with specific responsible persons or teams
• Access Control: Divide information access permissions based on personnel roles or departments
• Process Flow: Identify handlers or approvers for next process steps
• Message Notification: Send automated notifications to specific personnel or teams
• Team Collaboration: Build intelligent collaboration processes based on organizational structure

Application Scenarios

1. Intelligent Approval Process

Automatically find approvers from corresponding departments based on application content, precisely forward approval requests, improving process efficiency.

2. Department Information Summary

Quickly retrieve all member information of specific departments for generating department reports, team analysis, or resource allocation.

3. Personnel Data Linkage

When users submit requests, automatically associate their department, direct supervisor, and other information based on their identity, reducing manual input.

4. Intelligent Message Distribution

Automatically find relevant responsible persons based on business rules, precisely delivering system messages or work reminders to appropriate people.

Node Parameter Description

Search Condition Parameters

Parameter Name	Description	Required	Default Value
User Name	Match by personnel real name	No	None
Employee ID	Match by personnel ID number	No	None
Position	Match by personnel position or job title	No	None
Mobile Number	Match by personnel mobile phone number	No	None
Department Name	Match by department name	No	None
Group Chat Name	Match by group chat name	No	None

Condition Rule Description

Each search condition supports the following rule types:

Rule Type	Description	Example
Equals	Field value exactly matches specified value	Name equals "John Smith"
Not Equals	Field value does not equal specified value	Position not equals "Intern"
Contains	Field value contains specified content	Department name contains "Tech"
Not Contains	Field value does not contain specified content	Name not contains "Test"
Is Empty	Field value is empty	Mobile number is empty
Not Empty	Field value is not empty	Employee ID not empty

Value Type Settings

Value Type	Description	Example
Fixed Value	Directly input specific query value	"John Smith", "R&D Dept"
Variable Value	Reference variables in workflow as query value	department_name

Output Content

Output Field	Description
User Data (Array)	List of users matching conditions, each user includes: unique user ID, real name, position name, etc.

Usage Instructions

Basic Configuration Steps

1. Set Basic Search Conditions:
   1. Click needed search condition (like "User Name")
   2. Select matching rule (like "Equals", "Contains", etc.)
   3. Choose value type ("Fixed Value" or "Variable Value")
   4. Input specific query value or select variable
2. Add Multiple Search Conditions (Optional):
   1. Click "Add Condition" button to add more filter conditions
   2. Multiple conditions default to "AND" relationship, meaning all conditions must be met
3. View Output Fields:
   1. Expand "Output" section to understand query result data structure
   2. Familiarize with field meanings for correct reference in subsequent nodes
4. Connect Subsequent Nodes:
   1. Connect Personnel Retrieval Node output to nodes needing personnel information
   2. Use nodeName.userData to reference search results in subsequent nodes

Important Notes

Search Efficiency

When organization size is large, note how search condition settings affect efficiency:

• Prefer precise conditions (like employee ID, mobile number) over fuzzy conditions (like name contains)
• Reasonably combine multiple conditions to narrow search scope
• Avoid unnecessary full-scale queries to reduce system load

Data Permissions

Personnel retrieval is restricted by current Bot account permissions:

• Can only retrieve departments and personnel Bot has permission to access
• Some sensitive information (like mobile numbers) may require specific permissions
• Ensure Bot account has sufficient organizational structure access permissions

Data Timeliness

Personnel information may change, need to note:

• Search results reflect organizational structure state at current moment
• Need strategies for handling personnel position changes, resignations, etc.
• Recommend adding result verification logic for critical processes

Common Issues

Issue 1: What If Search Conditions Set But Not Returning Expected Results?

Solutions: Might be condition mismatch or permission issues. Recommend:

• Check if condition values are correct, especially variable references
• Confirm comparison operators used correctly (like "Equals" vs "Contains")
• Try relaxing conditions or using more precise conditions (like employee ID)
• Check if Bot account has permission to access target personnel information

Issue 2: How to Handle Cases of Same Names?

Solutions: Same names are common in large organizations:

• Combine multiple conditions (like name + department) for filtering
• Prioritize using unique identifiers (like employee ID or user ID) for searching
• Add same name judgment logic when processing results (like distinguishing by department)

Issue 3: Is There a Limit to Search Result Quantity?

Solutions: Yes, usually there are return quantity limits:

• Maximum 50 matching records returned by default
• For querying large numbers of users, consider batch processing or optimizing search conditions
• For large-scope scenarios like whole department queries, consider using more professional reporting tools

Common Paired Nodes

Node Type	Pairing Reason
Message Reply Node	Display retrieved personnel information to users
Conditional Branch Node	Decide subsequent process based on whether search results exist
Large Model Call Node	Use personnel information to build personalized replies or analysis
Create Group Chat Node	Automatically create specific group chats based on search results
HTTP Request Node	Send personnel information to external systems for processing
